SPECIALIST VALVES FOR HYGIENIC AND SANITARY PIGGING SYSTEMS
Pigging systems, widely adopted by food, beverage, homecare, paint, personal care, and pet food plants, are an extremely effective way to increase product yields, cut waste, speed up changeover times, improve profits and boost environmental sustainability.
Bardiani Piggable valves enable the smooth passage of the hygienic plug (‘pig’) and ensure maximization of product recovery, reduce waste and costs, and minimize maintenance operations
These are our 3 main solutions for pigging systems:
BBZPPG
SINGLE SEAT VALVE FOR PIGGING SYSTEMS
It enables simple, fast, and effective cleaning and product recovery.
Unlike standard valves, it features minimal dead-space which ensures maximum product recovery. It has been specially designed and engineered for applications with extremely high cleaning, sanitizing and hygiene requirements.
- Minimum numbers of gaskets in contact with the product for fast maintenance
- Specially designed plug and valve bodies allow product recovery with greater efficiency
- Valves dimensions from DN25 (OD 1’’) to DN100 (OD 6’’)

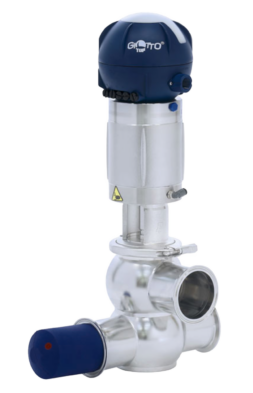

BZAW3PG
DOUBLE SEAL VALVE FOR PIGGING SYSTEMS
It guarantees separation between two fluids and recovery of the product with PIG.
The special design of the shutter provides a separation chamber between the two seals.
This ensures that any product leaks flow out through the two auxiliary valves located on the separation chamber, avoiding any contact between the two fluids.
The lower body is specially designed to enable the smooth passage of the PIG while the upper body might have 1 or 2 horizontal ports.
- Especially designed valve bodies allow product recovery with greater efficiency
- Small auxiliary valve ensure an immediate leakage detection
- Valves dimensions from DN40 (OD 1,5’’) to DN100 (OD 4’’)

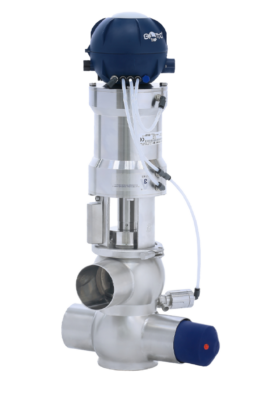

B93JPG
MIXPROOF DOUBLE SEAT VALVE FOR PIGGING SYSTEMS
It enables complete and safe separation between two fluids and recovery of the product with PIG.
The lower body is specially designed to enable the smooth passage of the PIG; the upper body might have one or two horizontal ports.
The upper shutter has an axial seal while the lower one has radial seal.
B93JPG may be installed vertical or suspended. When vertical installed, CIP is draining by the port above the bodies and by auxiliary valve.
- Especially designed valve bodies allow product recovery with greater efficiency
- Small auxiliary valve ensure an immediate leakage detection
- Valves dimensions from DN40 (OD 1,5’’) to DN100 (OD 4’’)

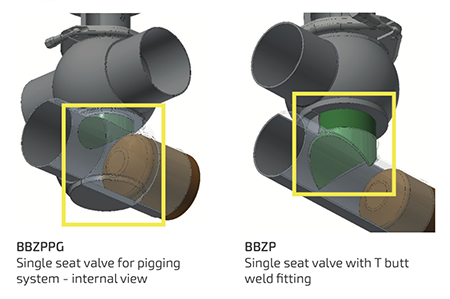

MAXIMISE PRODUCT RECOVERY
Specially designed valve body allows maximum product recovery from 30% up to 60% more, compared to standard single seat valve.
Bardiani unique minimal dead-space valves ensure:
- Maximization of product recovery
- Easily changeable seals without the need for special tool
- By reducing waste, water use, cleaning chemical use and subsequent disposal costs, it also helps towards the company’s environmental sustainability goals.
